Hammertec™

This hammer type mill is specially designed for sample preparation for falling number, gluten index and other reference analysis methods. Built with a focus on the user, the Hammertec is smaller and lighter and designed to make hammer mill operations quieter by at least 1.5 dB compared to existing solutions.

Teaser: Hammer type mill specially designed for falling number and wet gluten analysis. Smaller and lighter and designed to make hammer mill operations quieter by at least 1.5 dB compared to existing solutions.

What can you analyse: Grains, feeds and meals

Where can you analyse: In the lab

Principle: Hammer mill

Value

A quieter hammer mill for a safer and more pleasant working environment.

Sample type

Dry, flowable whole cereal grain samples: Common wheat, common rye, durum wheat and barley.

Parameters

Sample preparation.

Features

Innovative design helps to minimise sample carry-over

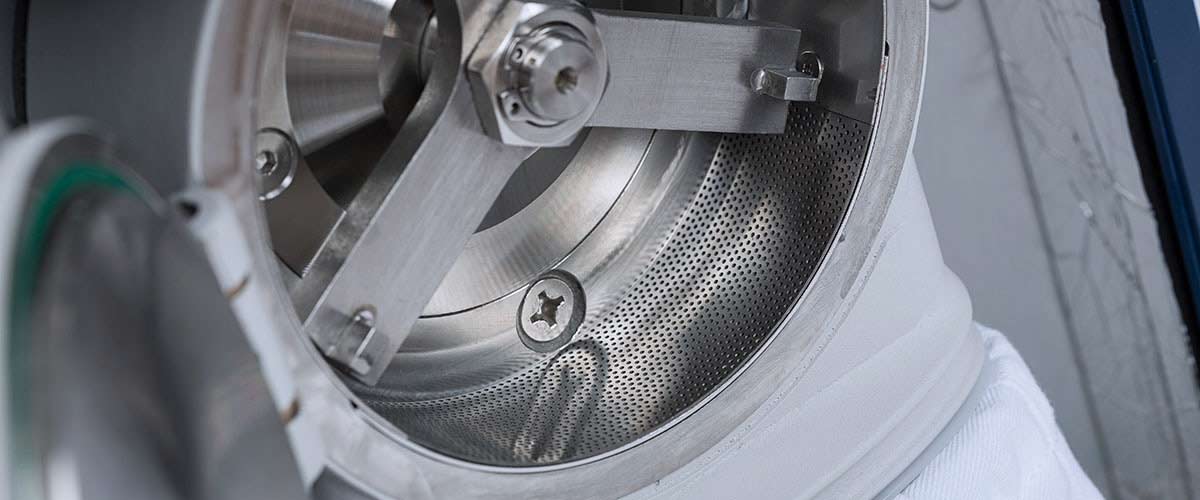

Crushes samples, such as grains, feeds and meals, into a fine and homogenous powder via high speed rotation of a hammer by which the sample is impacted. Innovative design helps to minimise sample carry-over, ensuring more accurate results.
Follows key requirements of AACCI/ICC/ISO methods

AACCI: Sample mill, with 0.5- or 0.8-mm screen to produce meal with particle size distribution as follows: >500 μm, 0–10%; >210 but <500 μm, 25–40%; <210 μm, 75–50%.

ISO: Laboratory mill, hammer type, and fitted with a 0,8 mm screen allowing the production of a wholemeal product meeting the particle size specification shown in 8.1.3.

Brochures and Papers

Technical specification

**Products measured and product presentation**
Dimensions (w x h x d)	24 x 38 x 55 cm (without Auto-feeder) 24 x 52 x 55 cm (with Auto-feeder)
Weight, operating:	40,6 kg
Power requirements	200-240 VAC 50/60 Hz or 100-120 VAC 50/60 Hz
Power consumption	1300 W
Thermal overload relay	200 - 240 VAC, 7 A 100 - 110 VAC, 14 A
Motor rotation speed	2800 rpm (50Hz) 3400 rpm (60Hz)
Hammer speed	16800 rpm
Safety brake	Yes
Noise level	< 80 dB
Transient overvoltage	2
Temperature	Indoor use, 5-40° C
Relative humidity	Maximum relative humidity 80% for temperatures up to 31° C decreasing linearly to 50% relative humidity at 40° C
Pollution degree	2
